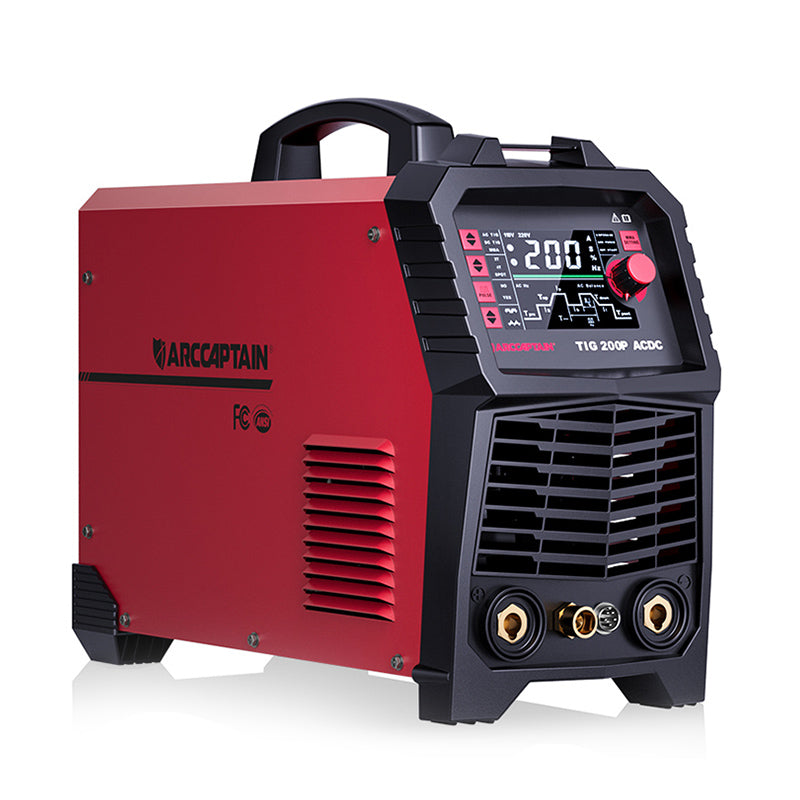

Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder

$899.99 $649.99
SAVE $250.00 (27% OFF)
FLASH SALE SAVINGS
Sale ends in:
00 Days
:
00 Hrs
:
00 Mins
:
00 Secs

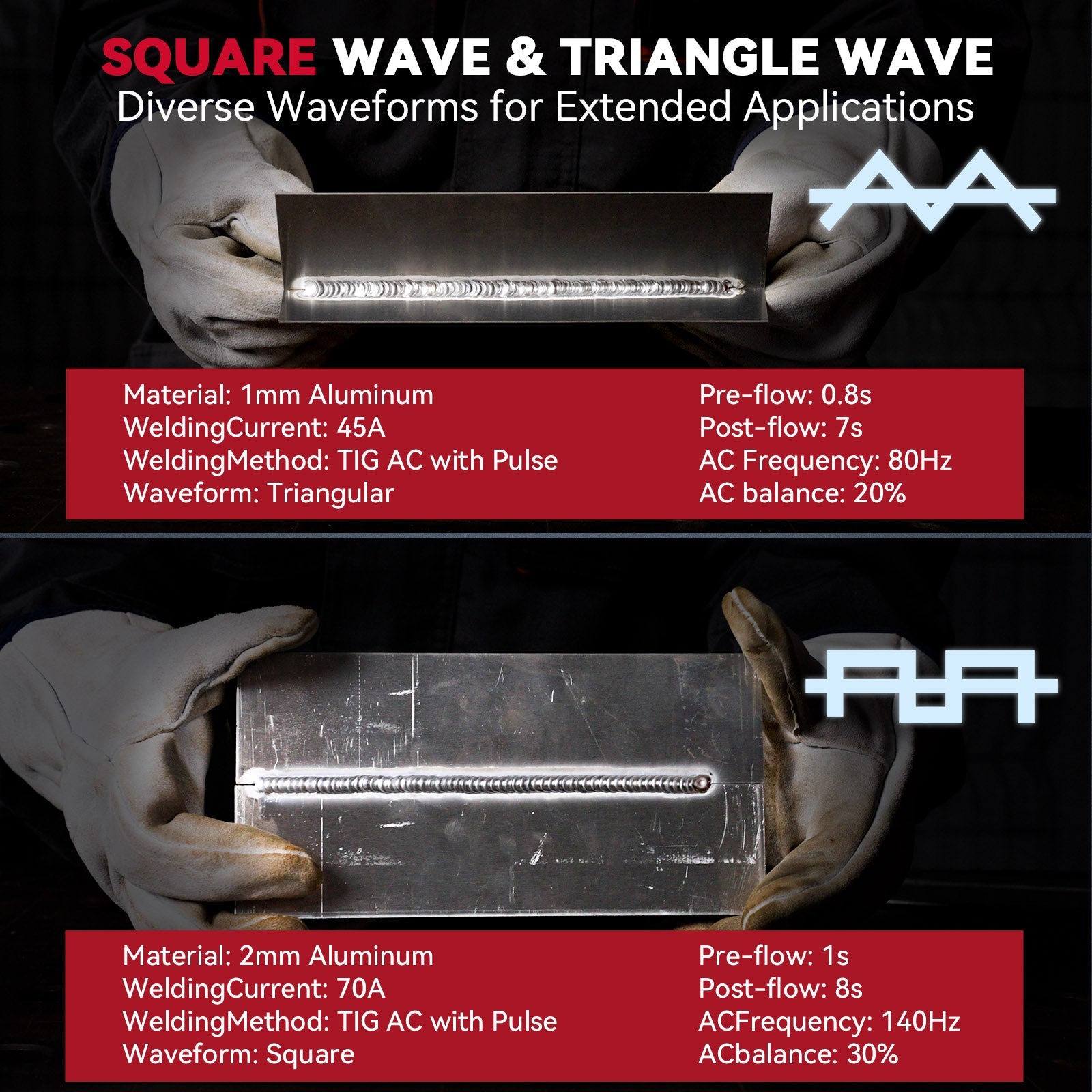

Welding effects demonstrated with different aluminum thicknesses


ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power

Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.

  • Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
  • Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
  • Digital control ensures whisper: quiet operation and consistent performance

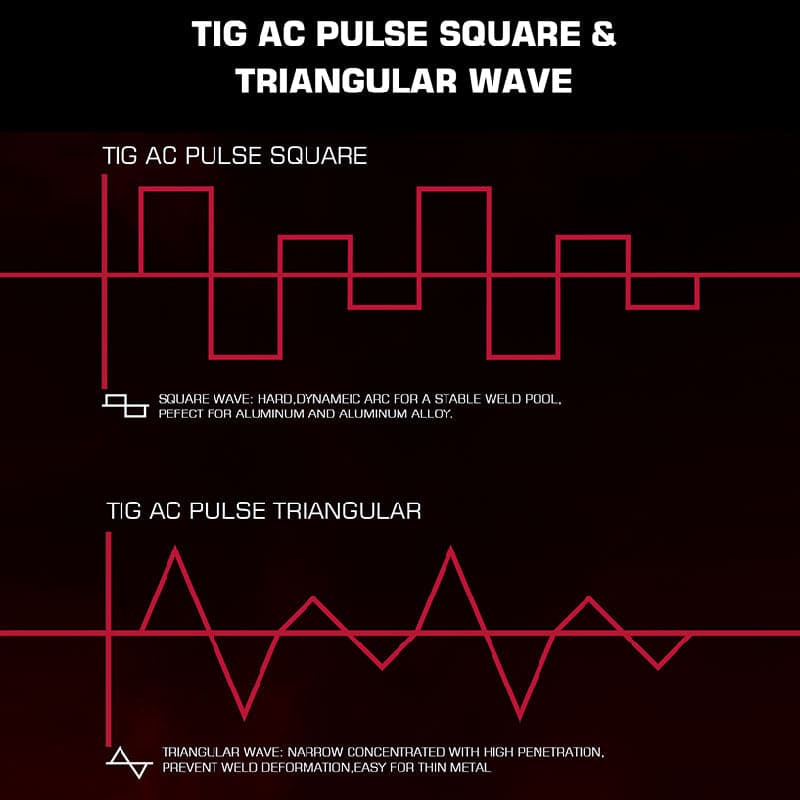

Smart Waveforms for Flawless Results

  • Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
  • Square wave AC crushes aluminum oxide for cleaner welds and better arc control

Built for Real-World Convenience

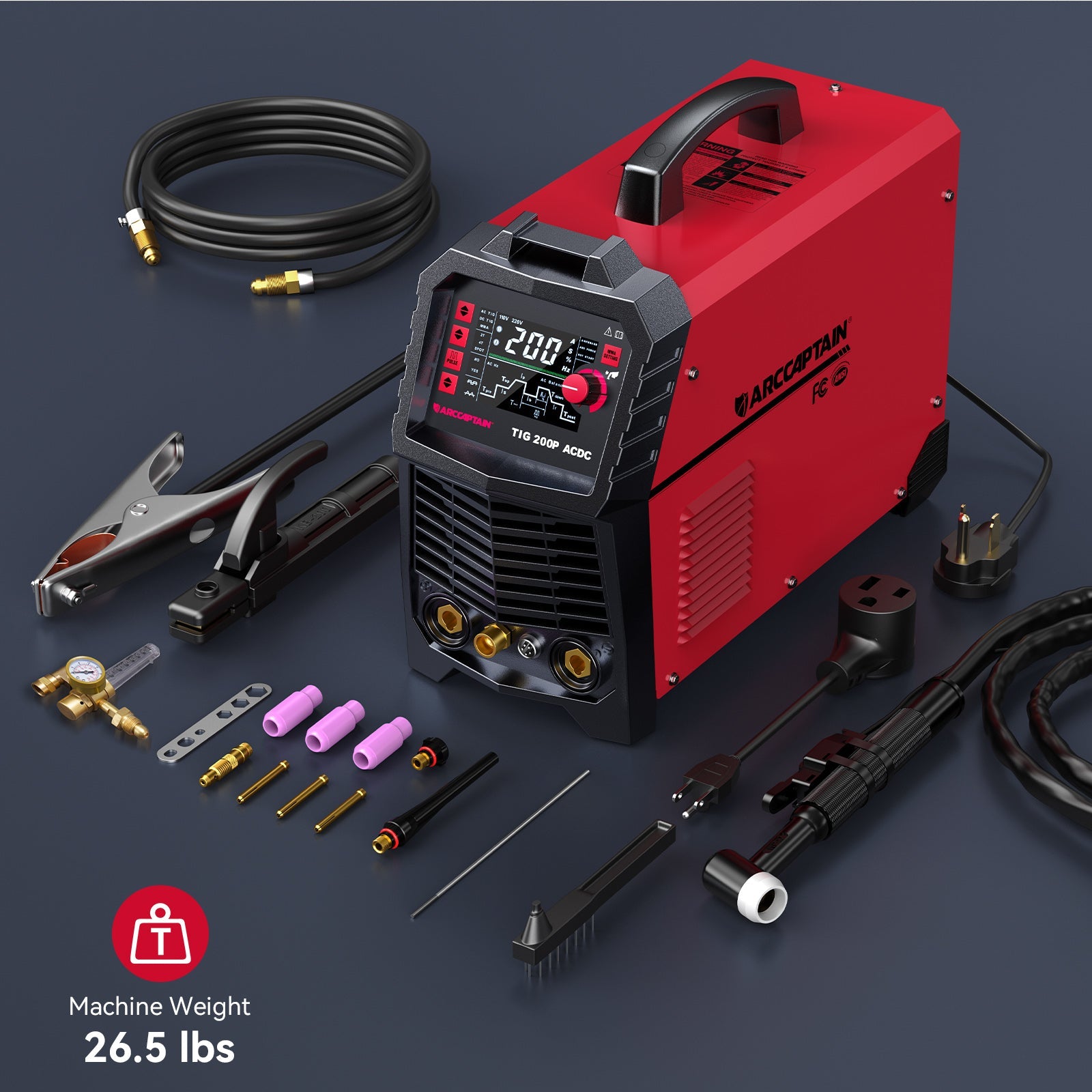

  • Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility

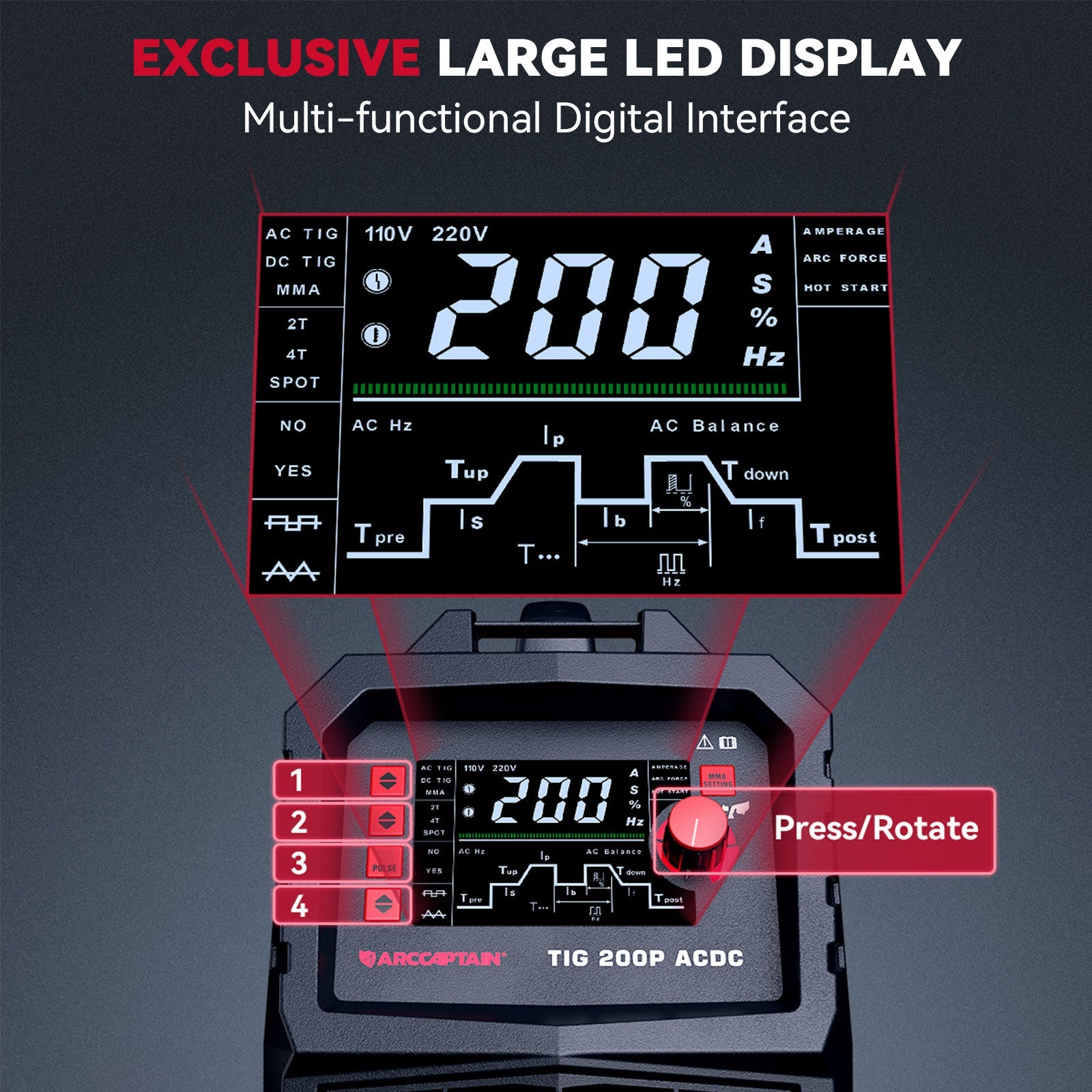

  • Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds

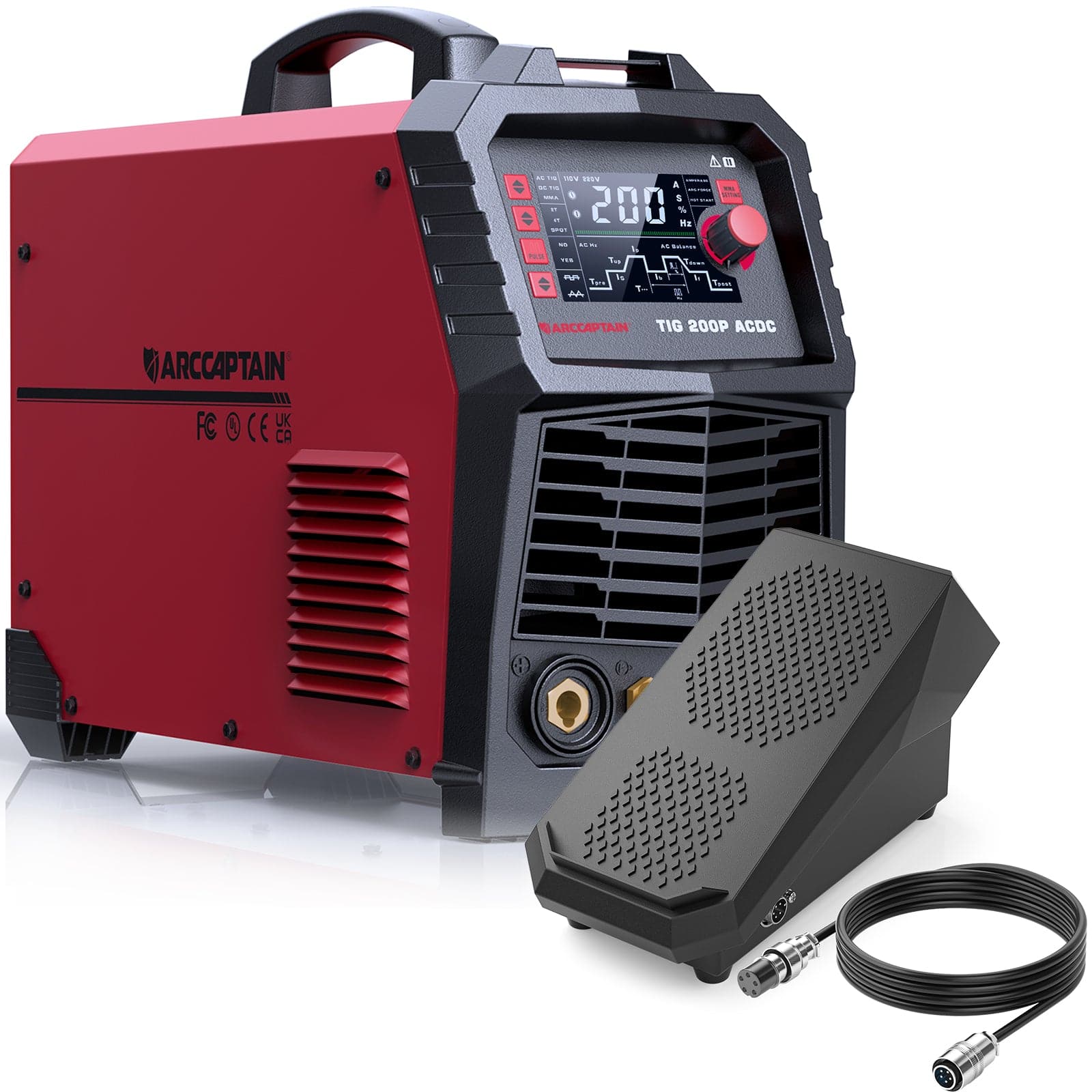

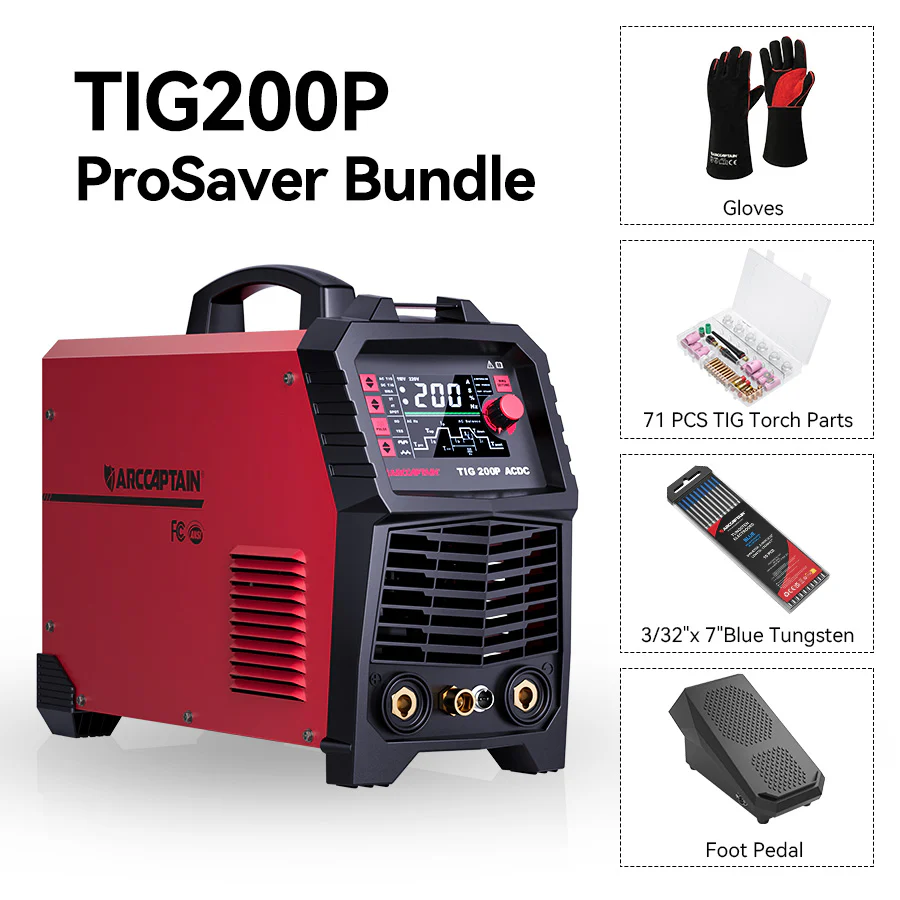

  • Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)

Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.

    Project Name

    Unit

    Value

    Power voltage

    VAC

    AC110V±15%

    AC220V±15%


    Input frequency

    Hz

    50

    Rated input current

    A

    33@TIG 35@MMA

    Capacity of power supply

    KVA

    6.0@TIG 7.5@MMA

    Output current range (TIG)

    A

    10~120(110 v)

    10~200 (220v)


    Output current range (MMA)

    A

    10~110(110v)

    10~160(220v)


    Arc force range

    A

    0~40

    Hot start current range

    A

    0~80

    No-load voltage

    V

    60

    Rated working voltage

    V

    18@TIG 26.4@MMA

    AC output frequency

    Hz

    20~250

    AC balance

    %

    20~60

    Background level

    A

    10~200

    Pulse frequency

    Hz

    0.5~200 (DC)

    0.5~25(AC)

    Pulse duty factor

    %

    5~95

    Pre-flow time

    S

    0~5

    Post-flow time

    S

    0~15

    Rising time

    S

    0~15

    Fall time

    S

    0~15

    Remote control

    -

    Yes

    Arc start mode

    -

    HF arc starter

    Efficiency (%)

    %

    80

    Duty cycle (%)

    %

    TIG: 200@25% -

    MMA: 160@25%

    Power factor

    -

    0.70

    Type of cooling

    -

    Air cooled

    Working temperature range

    °C

    -10~+40

    Storage temperature range

    °C

    -25~+55

    Protection class

    -

    IP21S

    Insulation class

    -

    B
